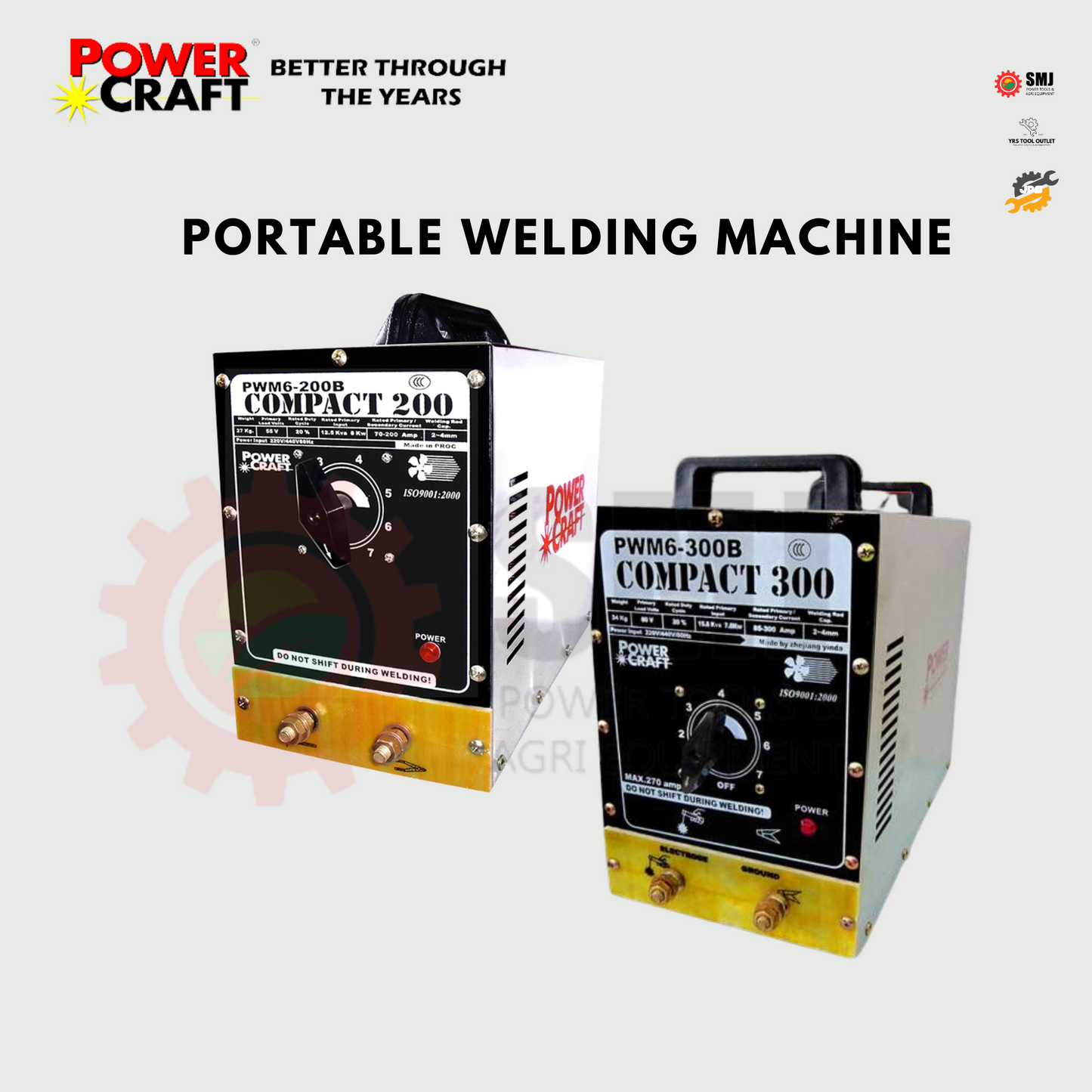

Powercraft AC Transformer ARC 200A 300A
Powercraft AC Transformer ARC 200A 300A
Regular price
₱6,899.00 PHP
Regular price
Sale price
₱6,899.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS FOR:
Powercraft AC Transformer ARC 200A PWM6 200B
| RATED OUTPUT CURRENT | 200A |
| RATED INPUT VOLTAGE | 220/440 V |
| RATED FREQUENCY | 60Hz |
| RATED INPUT CAPACITY | 12.5 KVA |
| NO LOAD ELEC. VOLTAGE | 55V |
| RATED DUTY CYCLE | 20% |
| RATED LOAD ELEC. VOLTAGE | 26V |
| CURRENT RANGE | 70- 200A |
| SUITABLE WELDING ROD DIA. | 2-4mm |
| WEIGHT | 27 kg |
| INSULATION GRADE | F |
| MACHINE DIMENSION | 41 x 17.5 x 29.5 cm |
Powercraft AC Transformer ARC 300A PWM6 300B
| RATED OUTPUT CURRENT (A) | 300 |
| RATED INPUT VOLTAGE (V) | 220/440 |
| RATED FREQUENCY (HZ) | 60 |
| RATED INPUT CAPACITY (KVA) | 15.5 |
| NO LOAD ELEC. VOLTAGE (V) | 55 |
| RATED DUTY CYCLE (%) | 20 |
| RATED LOAD ELEC. VOLTAGE (V) | 30 |
| CURRENT RANGE (A) | 85-300 |
| SUITABLE WELDING ROD DIA. (MM) | 2 – 4 |
| WEIGHT (KG) | 32 |
| INSULATION GRADE | F |
| MACHINE DIMENSION (CM) | 43 X 23 X 33 |
