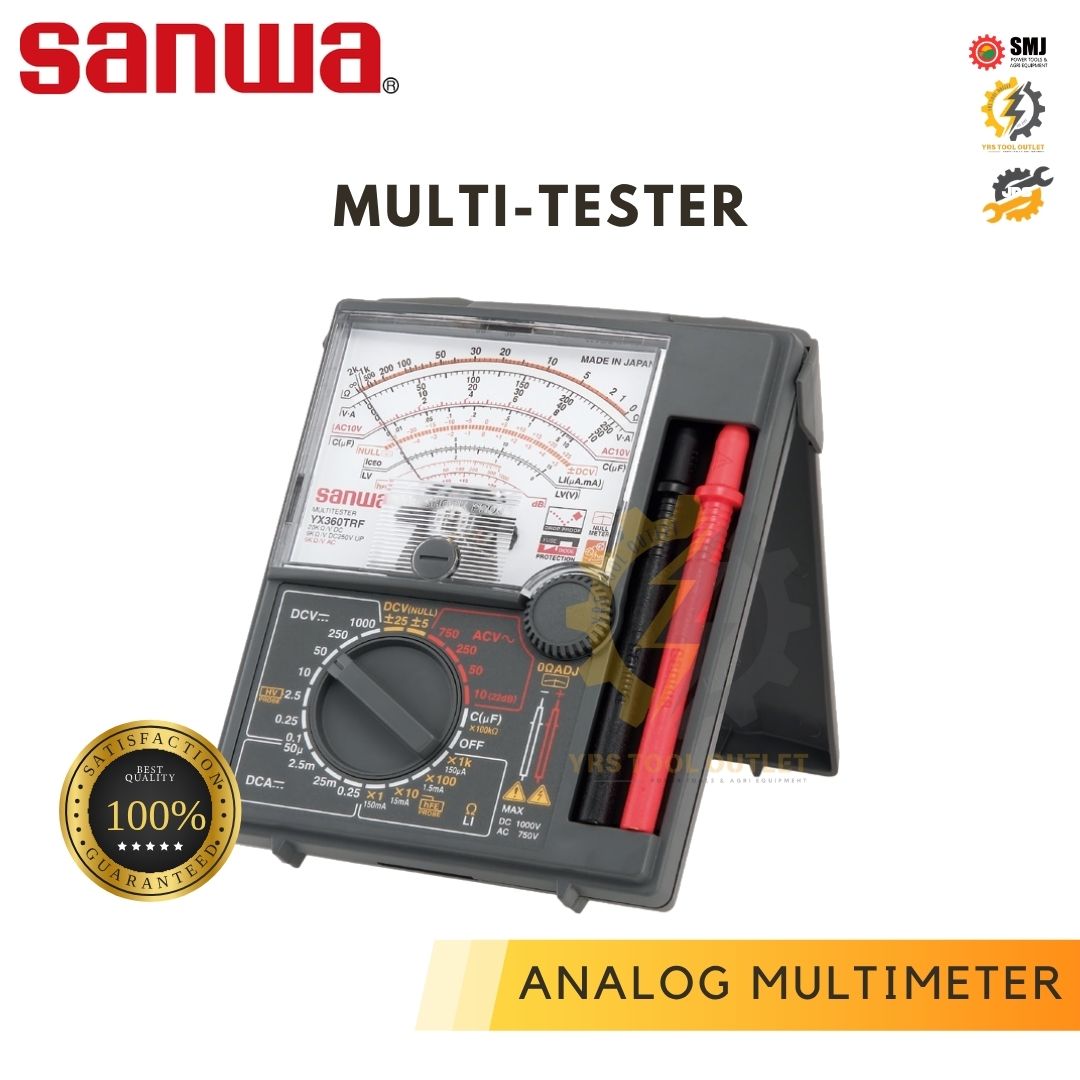

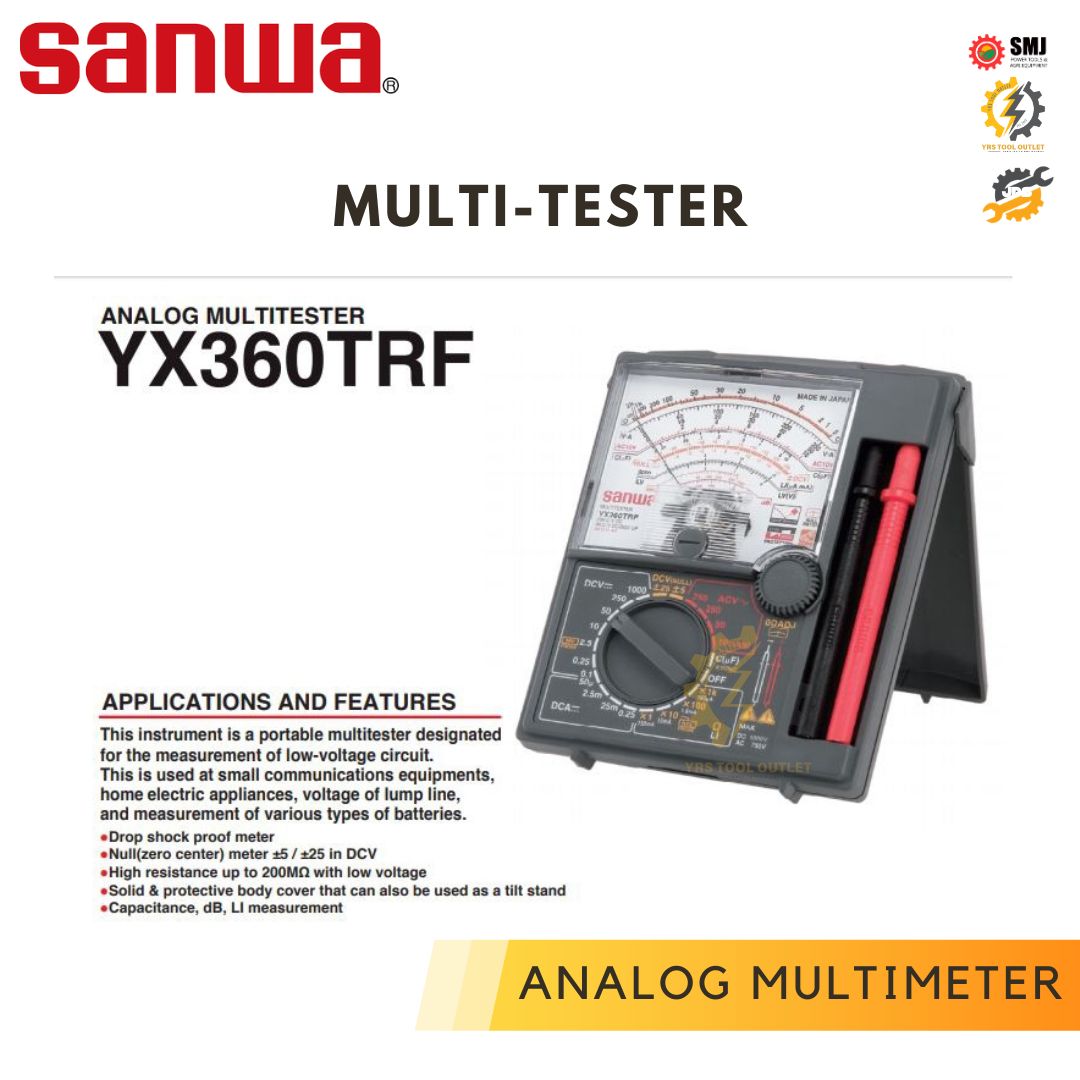

Sanwa YX360TRF Analog Multi Tester ( Drop Shockproof ) JAPAN

Sanwa YX360TRF Analog Multi Tester ( Drop Shockproof ) JAPAN

ORIGINAL 100% Genuine

Beware of Fake

Made in Japan

Best seller drop shock proof meter

*Drop shock proof meter

*Null (zero center) meter ±5 / ±25 in DCV

*High resistance up to 200MΩ with low voltage

*Protective body cover

*Capacitance, dB, Li measurement

YX360TRF Measuring range Accuracy

DCV 0.1V (20kΩ / V) ±5% of full scale

(NULL) 0.25 / 2.5 / 10 / 50 (20kΩ / V) / ±3% of full scale

250 / 1000V(9kΩ / V)

±5 / 25V (40kΩ / V) ±5% of full scale

ACV 10 / 50 / 250 / 750V (9kΩ / V) ±4% of full scale

Resistance 2k / 20k / 200k / 2MΩ ±3% of arc

(X1 / X10 / X100 / X1k)

200MΩ (X100k) ±5% of arc

Load current (LI) 0～150m / 15m / 1.5m / 150μ / 1.5μA

Capacitance 10μF *2

dB -10dB～+22dB (for 10VAC) ～+62dB

DC high voltage DC25kV (optional probe "HV-10T" is necessary)

hFE 1000 at ×10 range (optional probe "HFE-6T" is necessary)

Battery R6 (IEC) or UM-3(1.5V)×2

Fuse φ5.2×20mm (250V / 0.5A)

Size / Mass H159.5×W129×D41.5mm / approx. 320g

Standard accessories: Instruction manual, Hand strap

*The value in bracket at DCV and ACV is input resistance.

*1 Not including the resistance of fuse.

*2 Pointer indication of the maximum move by charged current in the capacitor
